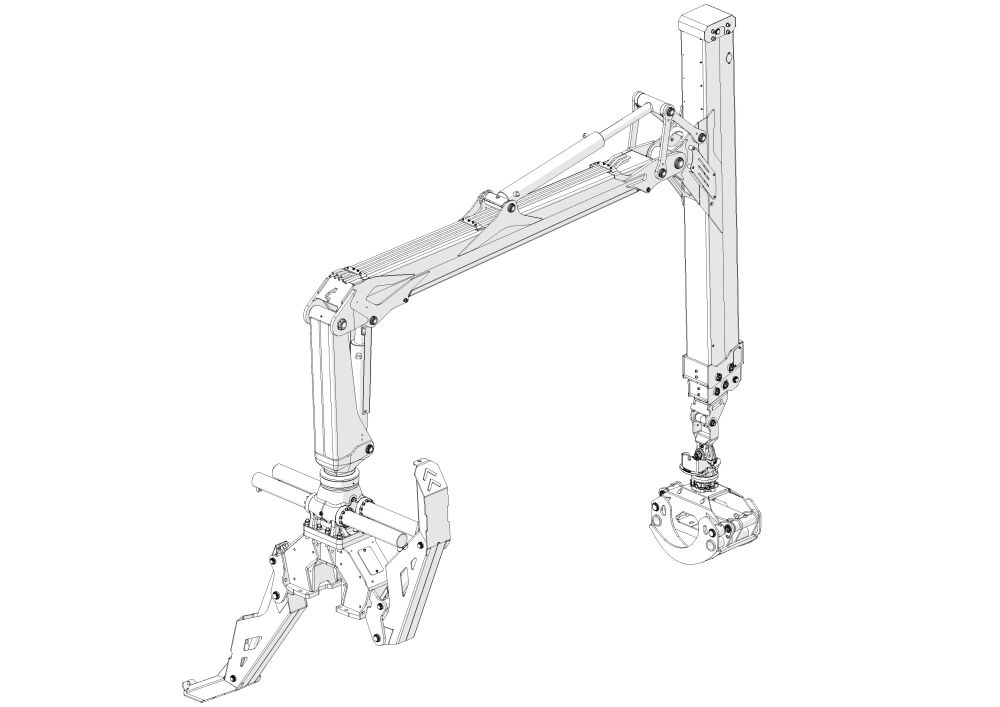

PALMS X100 offers the longest reach and highest lifting capacity among our product selection. Its double telescopic boom houses concealed hydraulic components, ensuring uninterrupted operation.
| Series | X |
| Max outreach, m | 10,1 |
| Lifting capacity at full reach, 240 Bar, w/o grapple and rotator, kg | 645 |
| Lifting capacity at 4 m, 240 Bar, w/o grapple and rotator, kg | 1930 |
| Brutto lifting torque 240 Bar, kNm | 106 |
| Telescopic boom stroke length, m | 4,2 |
| Slewing cylinder amount in slewing housing, pcs | 4 |
| Slewing torque, kNm | 30 |
| Working pressure, bar | 240 |
| Rotator maximum load, kN | 100 |
| Crane weight without support leg and valve block, kg | 1760 |
| Pillar slewing angle, degrees | 380 |
| Recommended oil flow, L/min | 120 |
