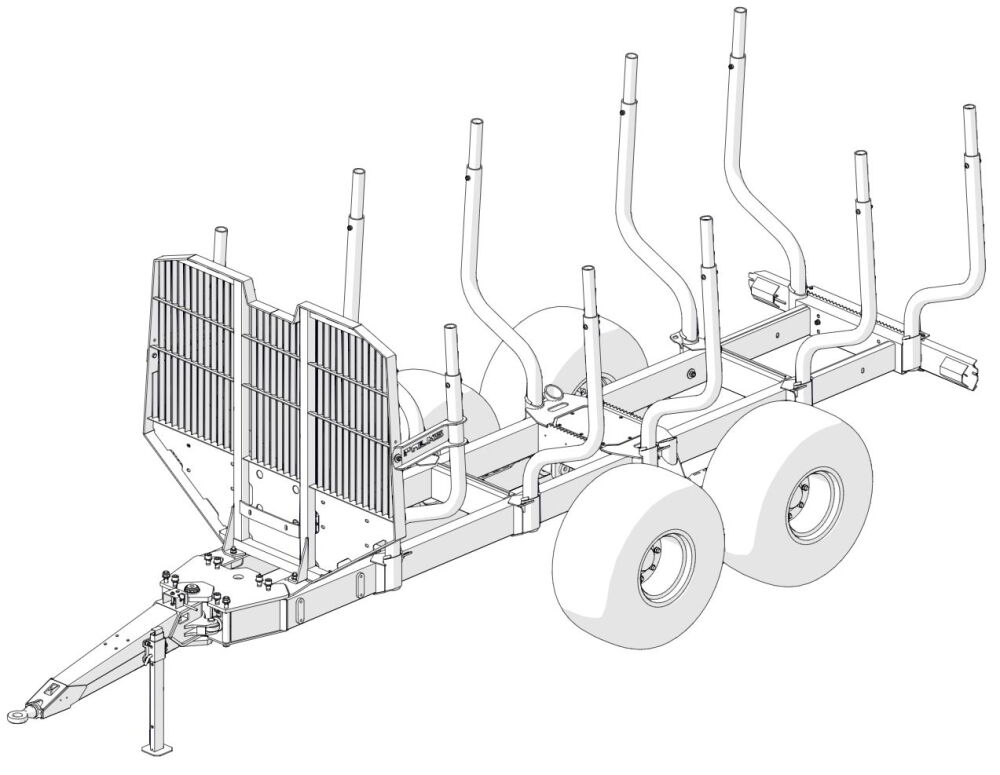

Double beam trailer with 12 000 kg nominal loading capacity.
Loading area cross section, m2 | 2,7 |
Loading area length, mm | 3975 |
Frame extension length, m | 0,85 |
Gross weight, kg | 15000 |
Curb weight (without options) kg | 2030 |
Total length, mm | 6200 |
Width with standard wheels | 2350 |
Standard wheel size | 500/50-17 |
Frame | 2x200x100x8 |
Max crane size by lifting torque kNm | 85 |
Drawbar control cylinders standard/(optional), pcs | 2 |
Frame type | Double beam |
Recommended cranes | PALMS 5.85 PALMS 7.75 |
See also | WHEELS - WH HAY BALE FRAME - HBF 2WD ON REAR WHEELS - 2WDR |
