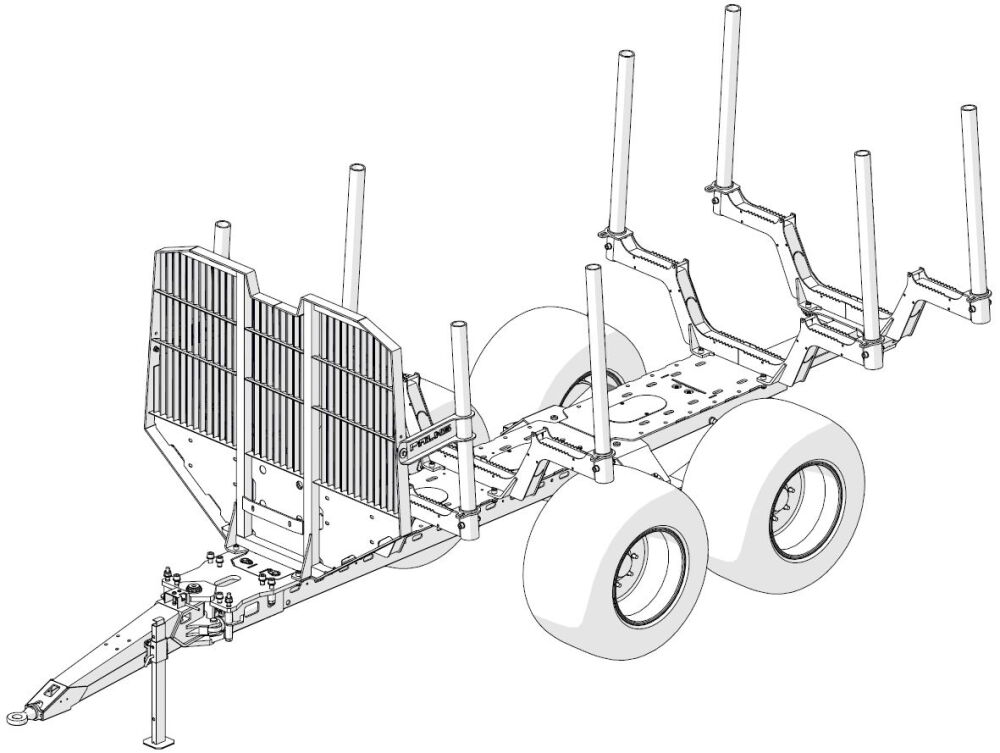

PALMS 12U

High-performance unibody trailer with 12 000 kg nominal loading capacity.

Specifications
Loading area cross section, m2 2,75
Loading area length, mm 3990
Frame extension length, m 1,085
Gross weight, kg 17000
Curb weight (without options) kg 2270
Total length, mm 6215
Width with standard wheels 2245
Standard wheel size 500/50-17
Frame unibody
Max crane size by lifting torque kNm 120
Drawbar control cylinders standard/(optional), pcs 2
Frame type Unibody (Forwarder)
Recommended cranes
