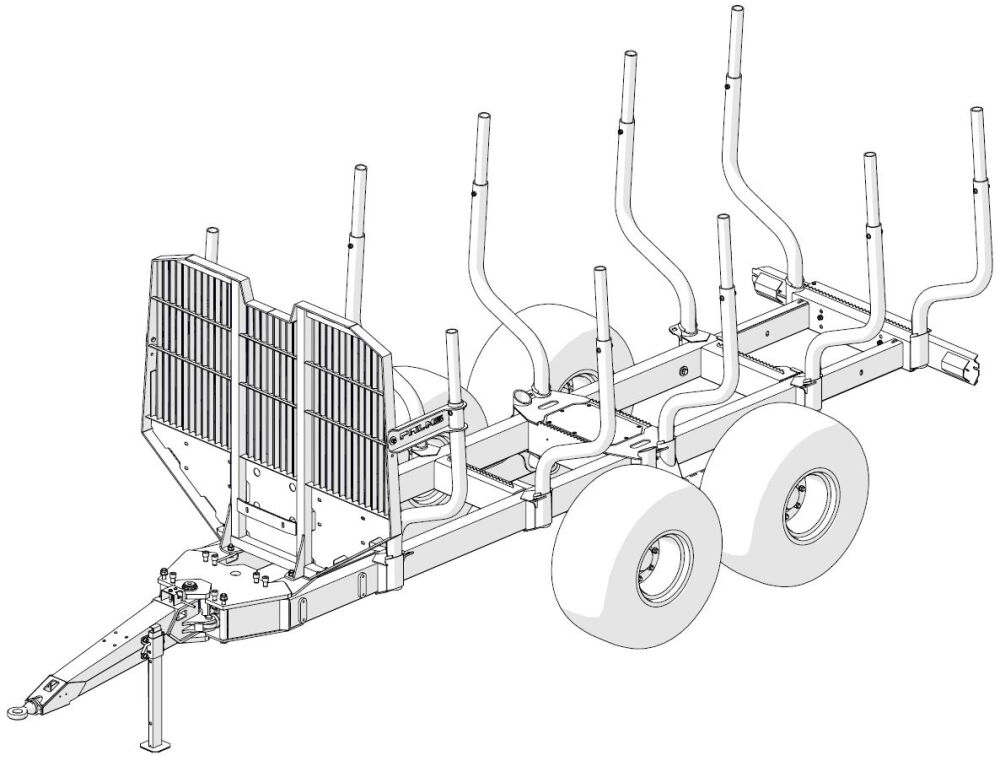

Double beam trailer with 14 000 kg nominal loading capacity.
Loading area cross section, m2 | 3,0 |
Loading area length, mm | 4080 |
Frame extension length, m | 0,86 |
Gross weight, kg | 18000 |
Curb weight (without options) kg | 2375 |
Total length, mm | 6300 |
Width with standard wheels | 2450 |
Standard wheel size | 500/50-17 |
Frame | 2x200x120x10 |
Max crane size by lifting torque kNm | 112 |
Drawbar control cylinders standard/(optional), pcs | 2 |
Frame type | Double beam |
Recommended cranes | PALMS 5.85 PALMS 7.94 |
See also | WHEELS - WH WOOD SORTER - WS 2WD ON REAR WHEELS - 2WDR |
