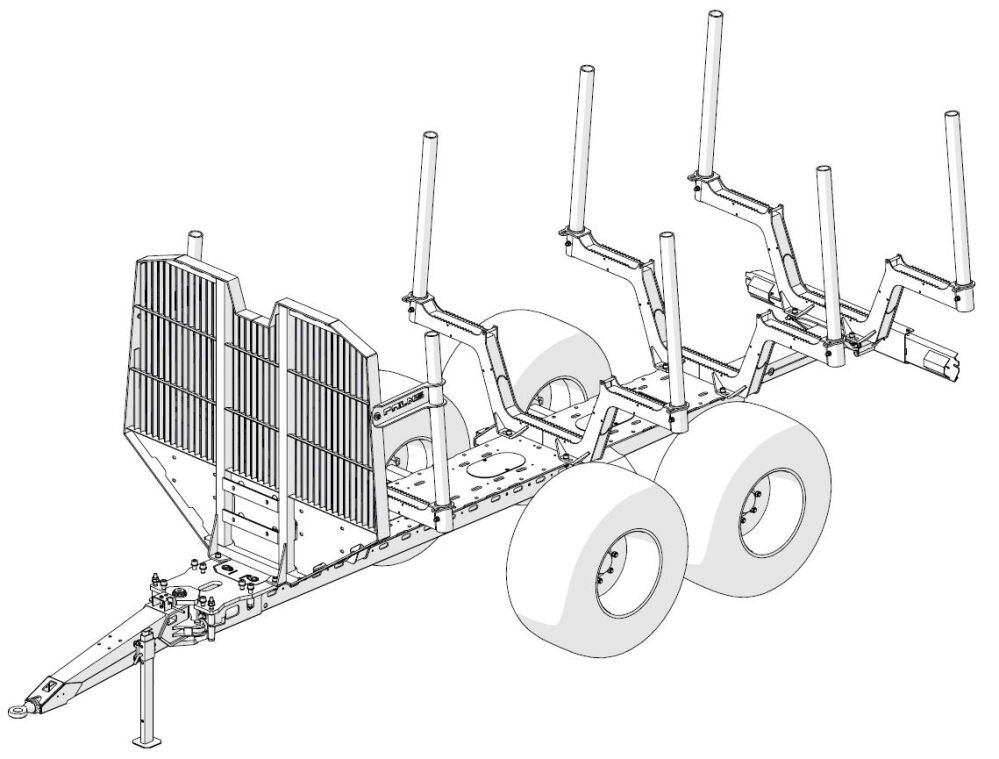

High-performance unibody trailer with 15 000 kg nominal loading capacity.
Loading area cross section, m2 | 3,2 |
Loading area length, mm | 4175 |
Frame extension length, m | 1,085 |
Gross weight, kg | 19000 |
Curb weight (without options) kg | 2545 |
Total length, mm | 6415 |
Width with standard wheels | 2450 |
Standard wheel size | 500/45-22,5 |
Frame | unibody |
Max crane size by lifting torque kNm | 120 |
Drawbar control cylinders standard/(optional), pcs | 2 |
Frame type | Unibody (Forwarder) |
Recommended cranes | PALMS 7.86 PALMS 7.94 PALMS X100 |
