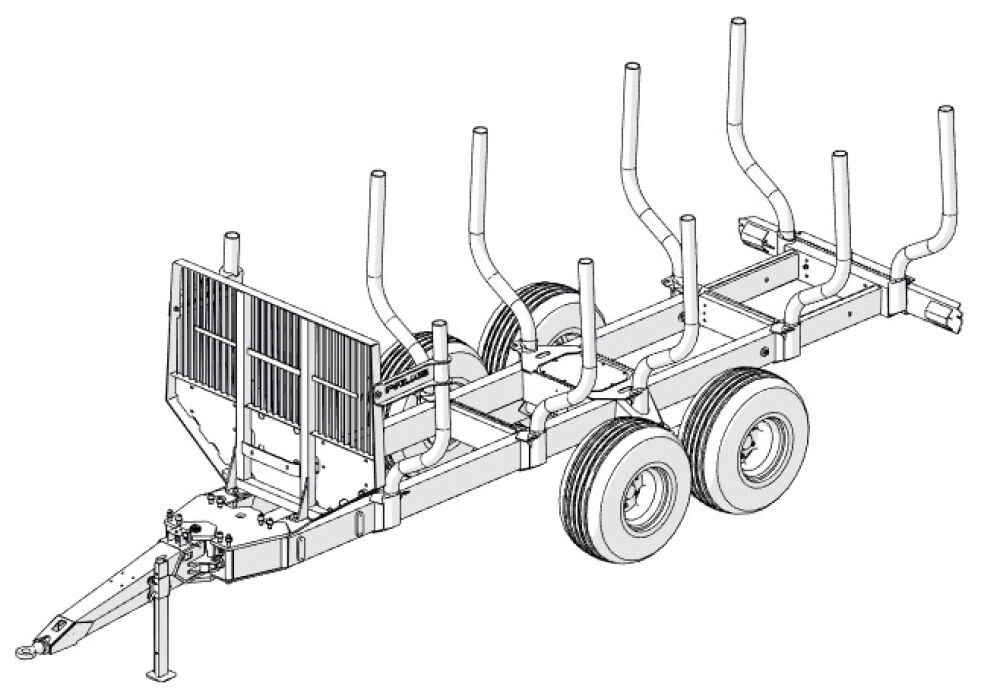

Double beam trailer with 8 000 kg nominal loading capacity.

Loading area cross section, m2 1,95
Loading area length, mm 3975
Frame extension length, m 0,85
Gross weight, kg 10000
Curb weight (without options) kg 1510
Total length, mm 6200
Width with standard wheels 2095
Standard wheel size 400/60-15,5
Frame 2x200x100x8
Max crane size by lifting torque kNm 85
Drawbar control cylinders standard/(optional), pcs 2
Frame type Double beam
Recommended cranes
