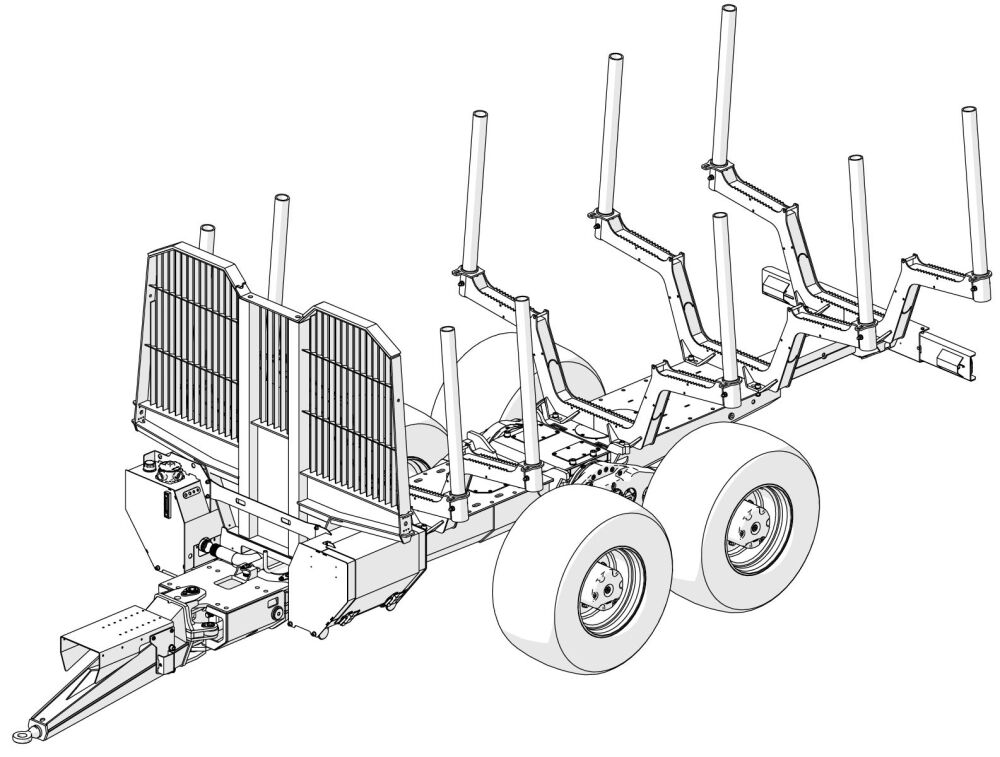

Experience forwarder-like performance with PALMS hydromechanical unibody trailers designed to conquer the toughest terrains. Hydromechanical 4x4 system is compatible to all suitable sized tractors with PTO.
| Loading area cross section, m2 | 3,2 |
| Loading area length, mm | 4185 |
| Frame extension length, m | 1,085 |
| Gross weight, kg | 18000 |
| Curb weight (without options) kg | 4920 |
| Total length, mm | 6430 |
| Width with standard wheels | 2470 |
| Standard wheel size | 600/50x22,5 |
| Frame | unibody |
| Max crane size by lifting torque kNm | 120 |
| Drawbar control cylinders standard/(optional), pcs | 2 |
| Frame type | Unibody (Forwarder) |
| Recommended cranes | PALMS 7.86 PALMS 7.94 PALMS X100 |
| See also | WHEELS - WH Y TYPE DRAWBAR - CY FORWARDER TYPE HYDRAULIC BUNK EXTENSION - PA-H |
